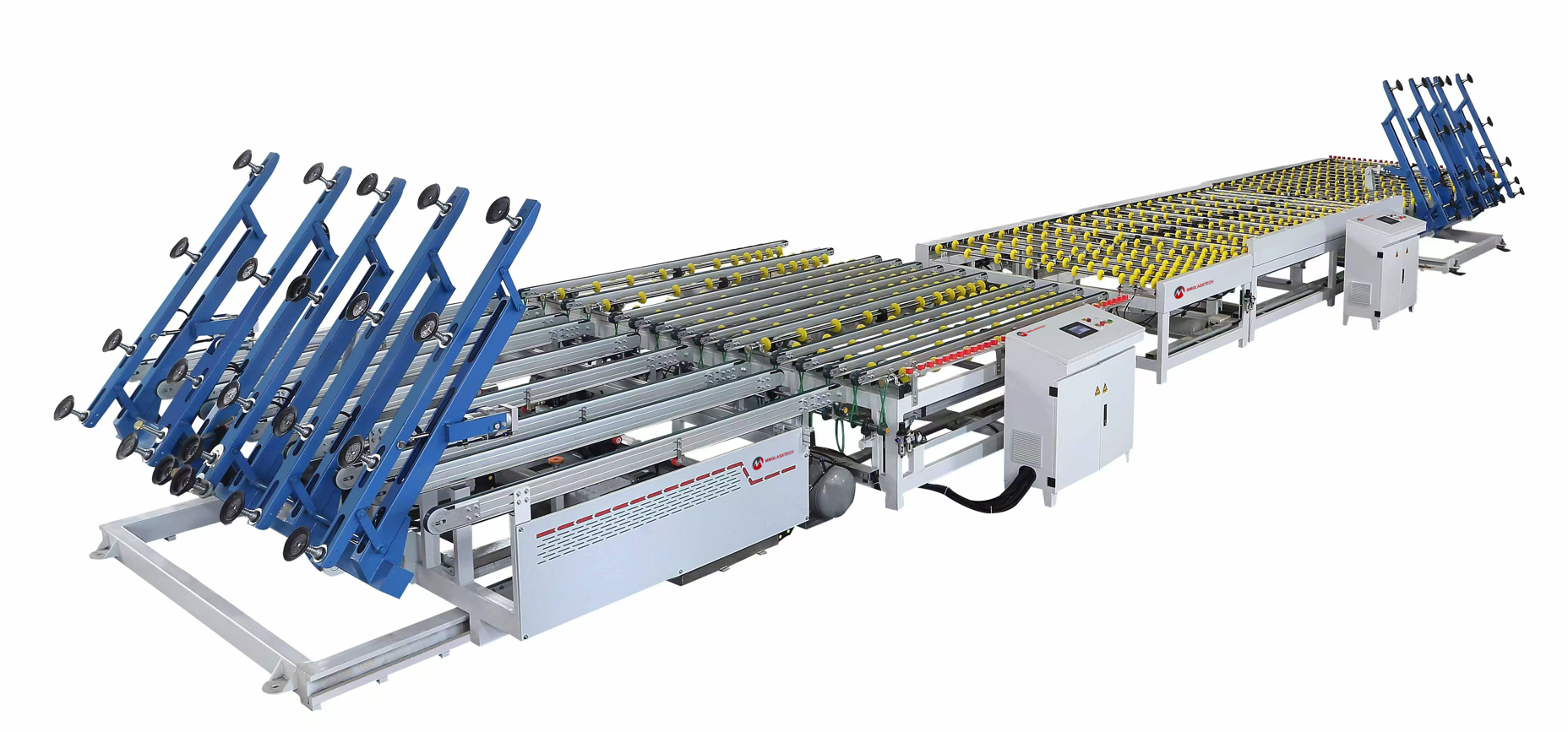

3725 High-speed Automatic loading and unloading

The unloading platform suction cups are made of high-quality rubber corrugated cups with a diameter of 150mm. The vacuum system suction rate is 25m³/h. The suction cup rotation drive is a reciprocating crank driven by a reducer. The suction cup frame lift drive is pneumatic, with an air pressure requirement of at least 0.6MPa. Maximum unloading glass: 2500x2000mm
