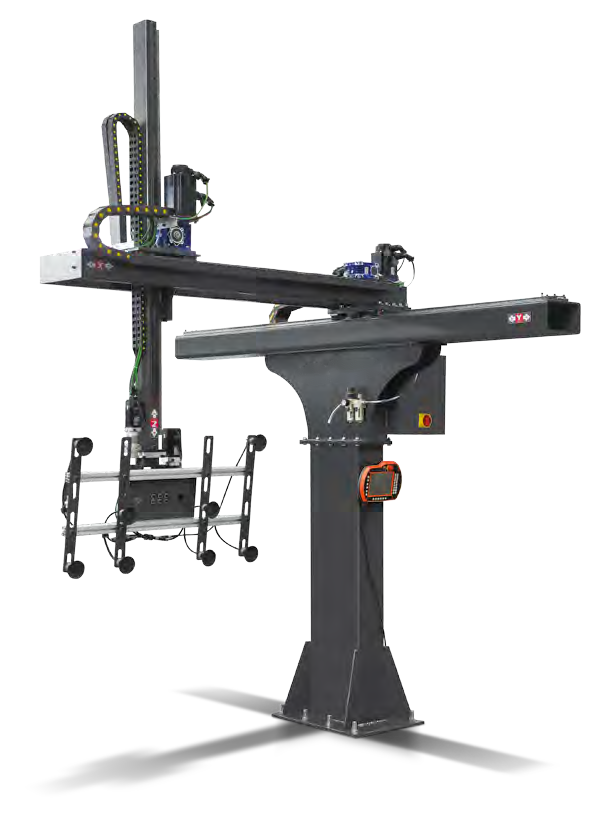

Glass loading and unloading machine

Automatic glass loading and unloading machine

Features：

1, This machine is suitable for taking the upper and lower pieces of glass in insulating glass equipment, washing machine, edgers and other equipment.

2, The system adopts 5-axis manipulator numerical control system, which is simple, safe and reliable.

3, Servo motors are used in 5-axis motion, which has high precision, good safety and high reliability.

4,The operation is controlled by touch screen, easy to operate.

5,The moving unit adopts imported linear guide slide block.

6, With automatic alarm for shortage of materials, under-voltage waiting for suction cups, power failure protection, etc., and the safety factor is extremely high.

7, Use high-quality vacuum sucker, with high negative pressure and sufficient suction

8, Can be customized according to customer requirements.
