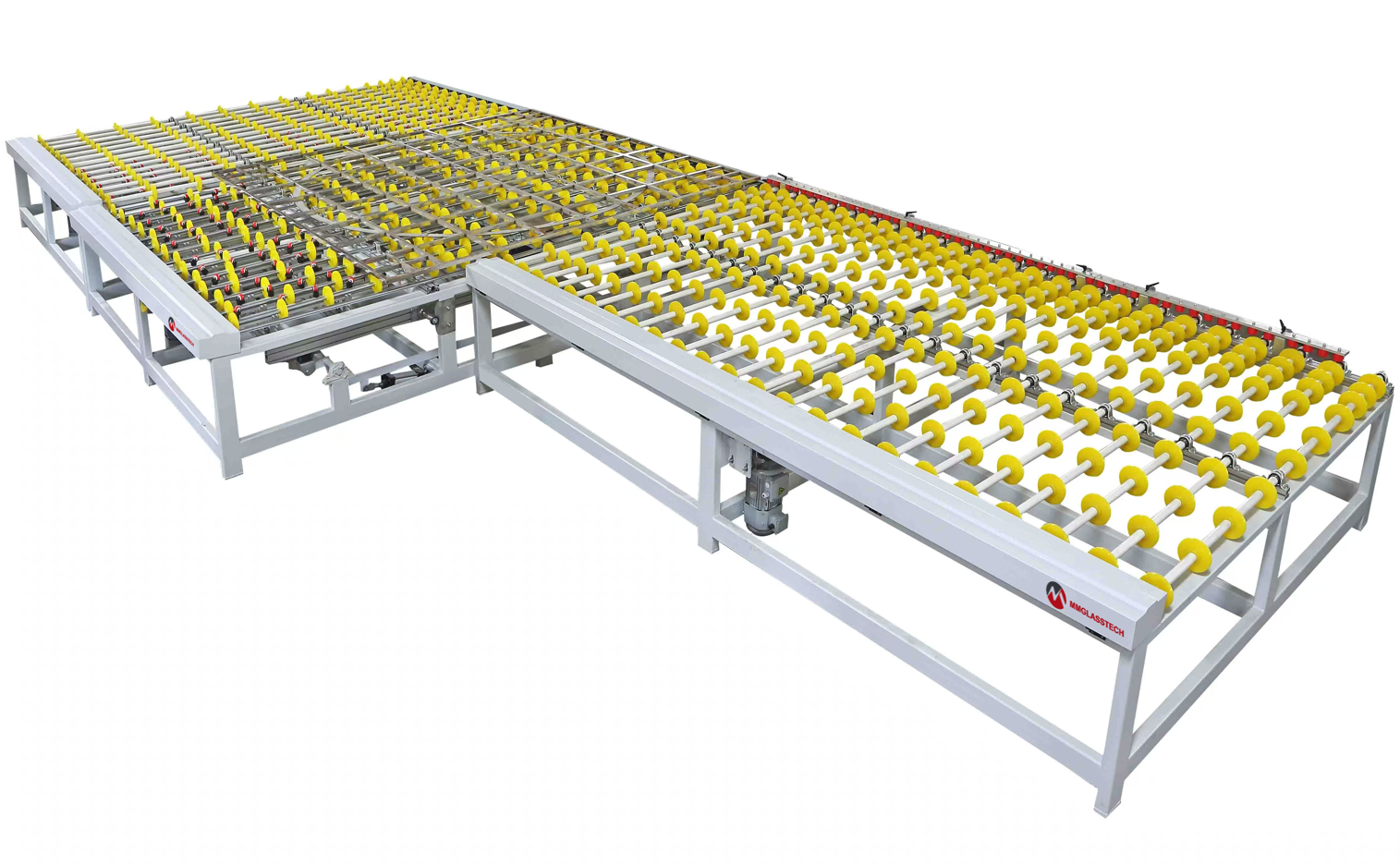

Lifting turntable

1. The turntable's drive utilizes servo-controlled precise positioning. The front section operates slowly, coordinated with the double-sided conveyor, while the glass exits the turntable and moves rapidly, creating a clearer gap with the glass behind it.
2. After entering the turntable, the large glass is lifted, rotated 90 degrees, and then lowered. The small glass remains stationary and is then transferred to the rear section's inclined roller conveyor. The intermediate stage then uses the inclined rollers to align the glass to the side, ensuring smooth entry into the second machine.
3. Whether to rotate is manually controlled.
